Disassembling the Eberspacher D2 main unit.
Eberspacher Service 2 - Airtronic D2 D4 service tips

Unscrew the four crosshead screws and remove the blower unit.
The wires fixed to the glow pin mean it cannot be removed with a standard 12mm socket spanner.
If you are doing a full disassembly it can sometimes be removed with an open ended spanner once the blower unit has been removed but our make of spanners would not rotate enough to get to the next flat.
The open ended spanner cannot used when replacing the glowpin screen without removing the blower unit.
Roy's solution - modify a deep socket using an angle grinder to cut a slot, ideally the slot should be a little longer than shown.
The cut was later extended to make the slot about 30mm long. Smooth any sharp edges to avoid damage to the wires.
A hacksaw and file could be used instead of an angle grinder.
This was a 3/8 drive deep socket (about 65mm long), 12mm, cost on ebay 2.34 including postage Feb 2011.
A 1/2 inch deep drive socket would also do provided the outer wall is not too thick.
Fit the modified socket over the wires onto the glow pin, attach a socket wrench and unscrew.
Take care the wires do not catch up while unscrewing.
The glow pin screen was removed at this stage but no photos were taken during its removal.
I took care not to push the screen into the burner when levering the sides inwards with a small screwdriver so it loosened and could be hooked out.
A tip from David Jerrard, he uses a 7mm tap, a couple of turns grips but does not expand the gauze allowing it to be removed easily. Not worth buying one specially but if you have one in the toolbox it could be tried.

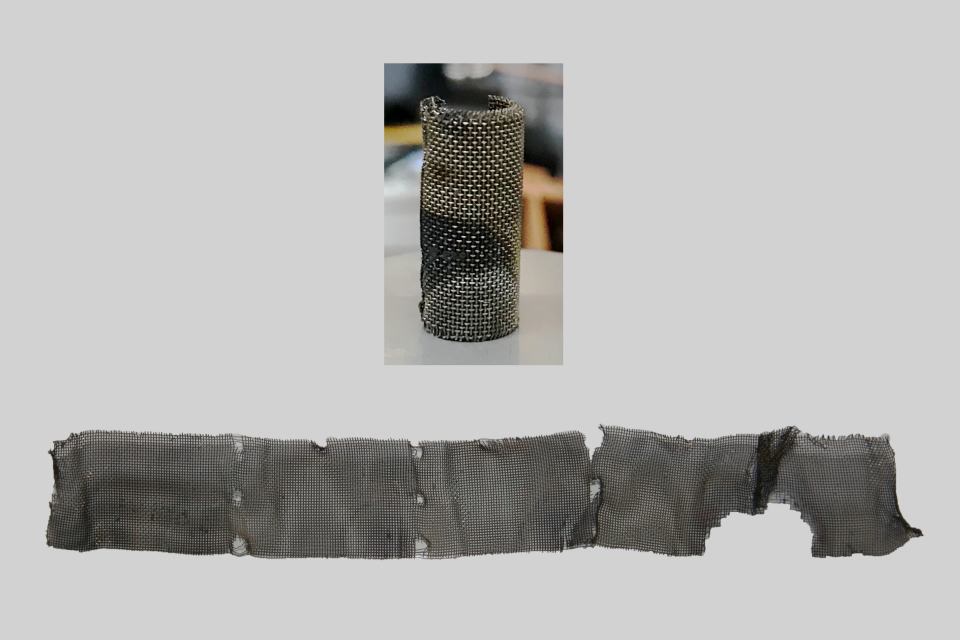

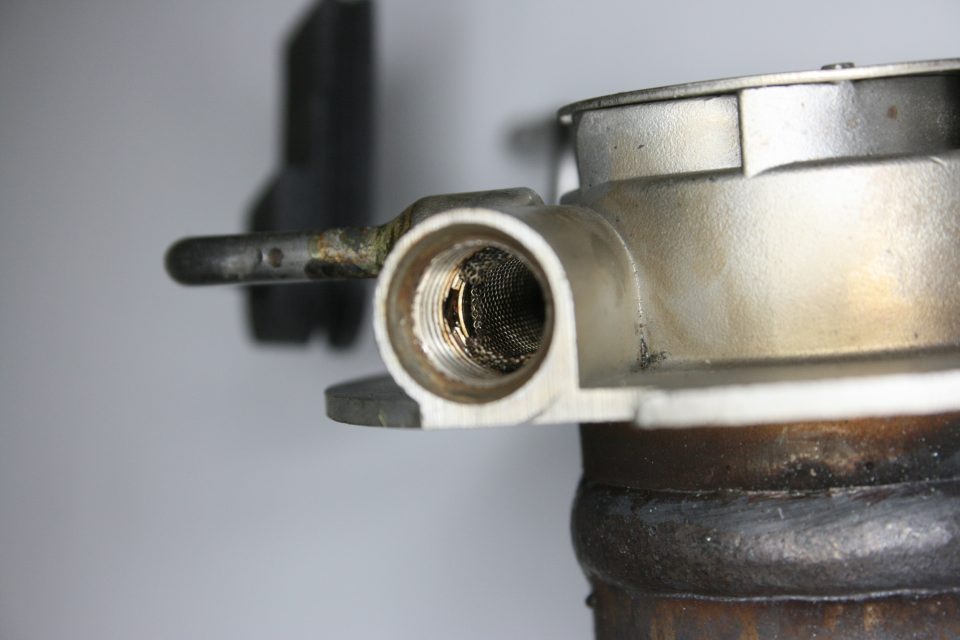

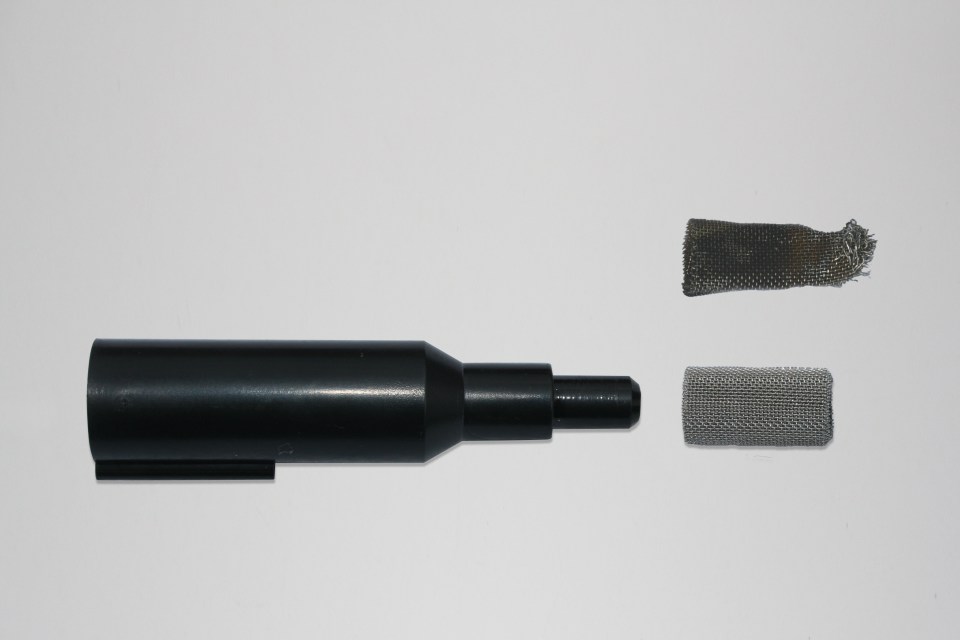

Replace the screen even if the old one looks clean, the small gaps between the layers can become blocked.
Note that if you are only replacing the glow pin screen it can be done in situ by just removing the upper case, ECU and glow pin.
Eberspacher recommendations are to replace it every year irrespective of its condition.

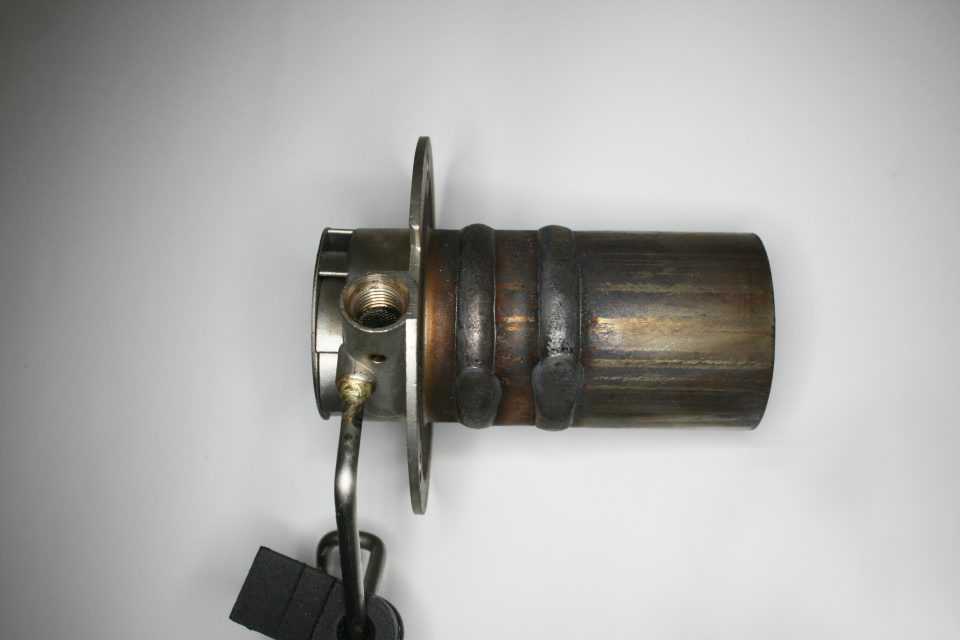

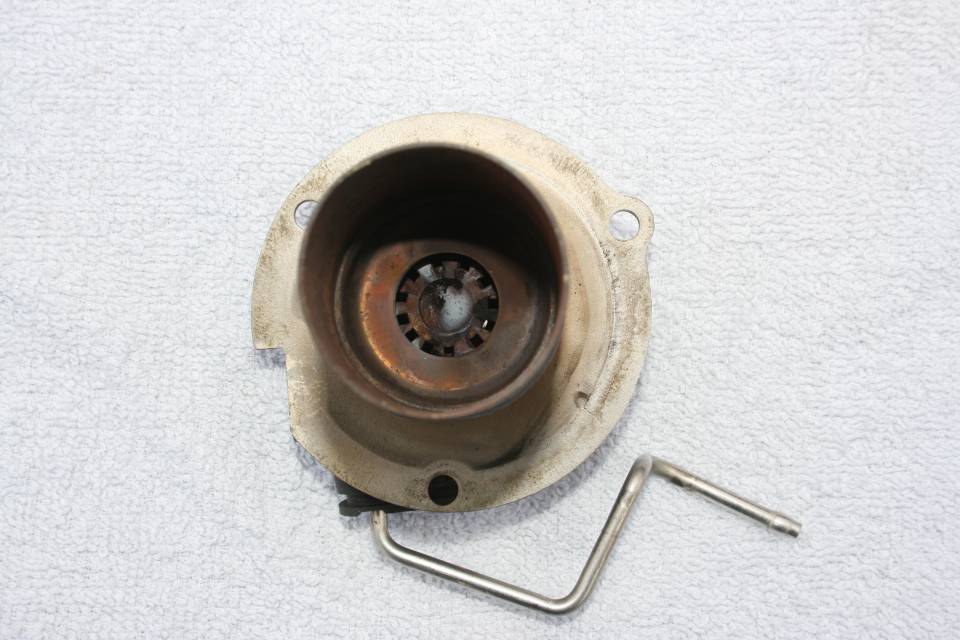

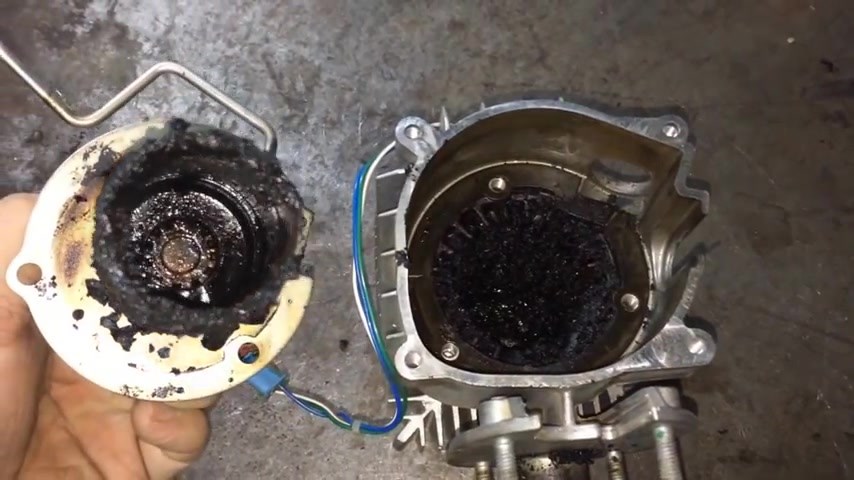

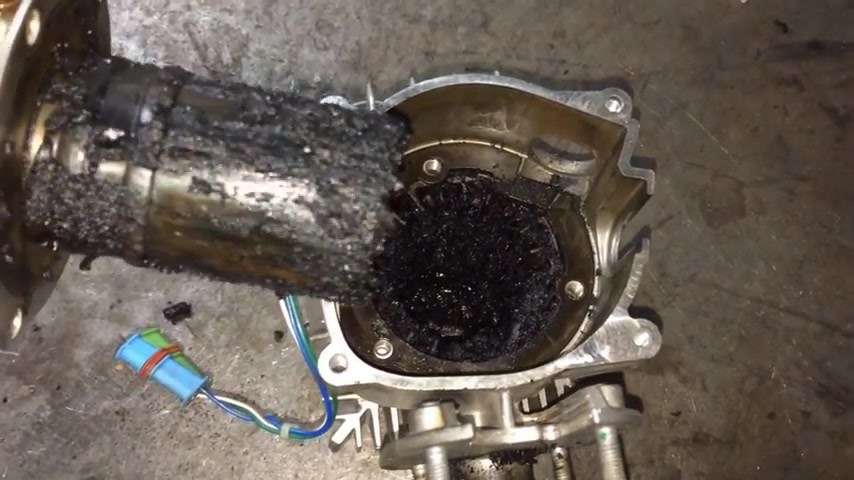

The D2 burner is held by 3 torx T25 bolts, but before you undo them, make sure you have a replacement burner gasket.

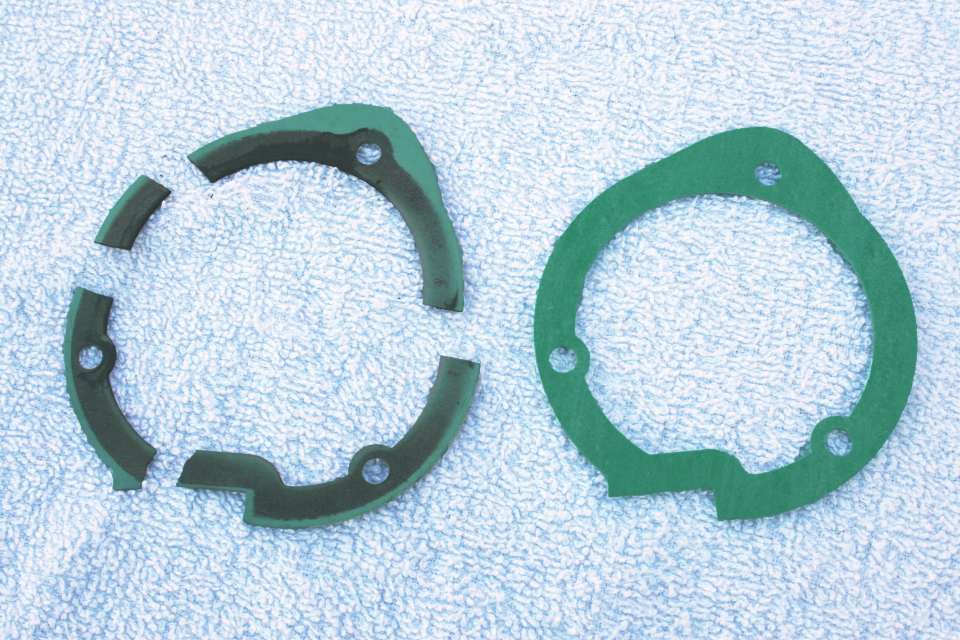

The old gasket usually falls apart but even if it looks intact replace it.

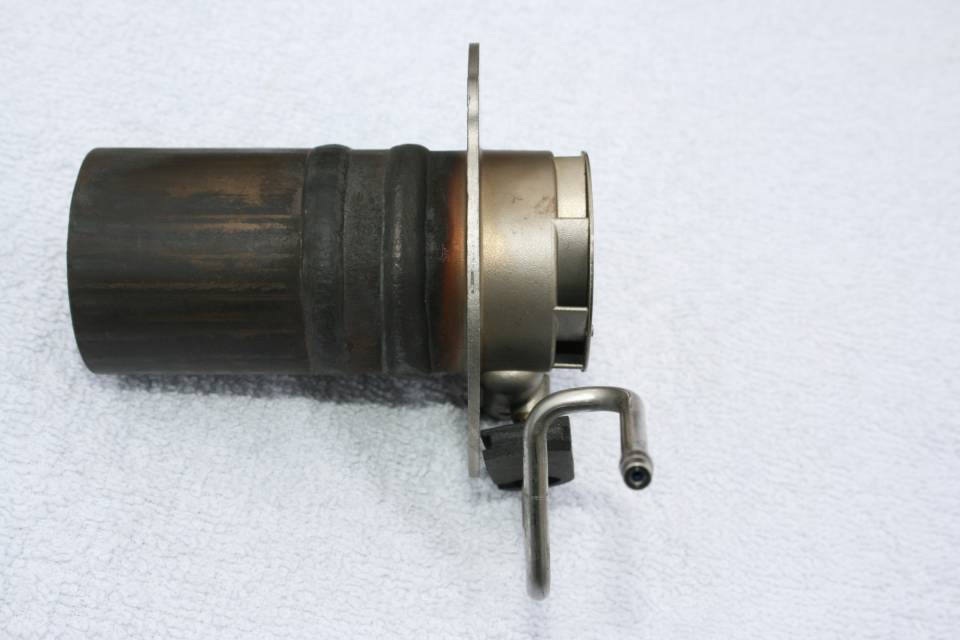

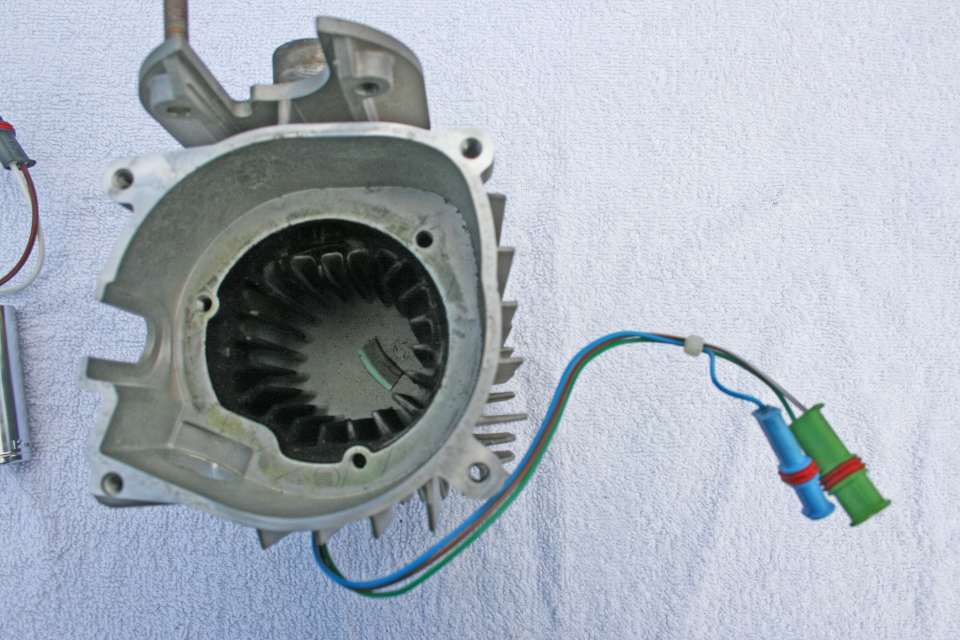

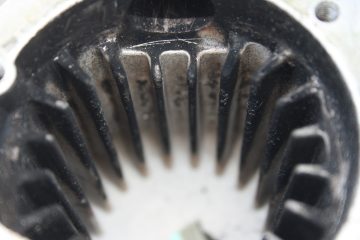

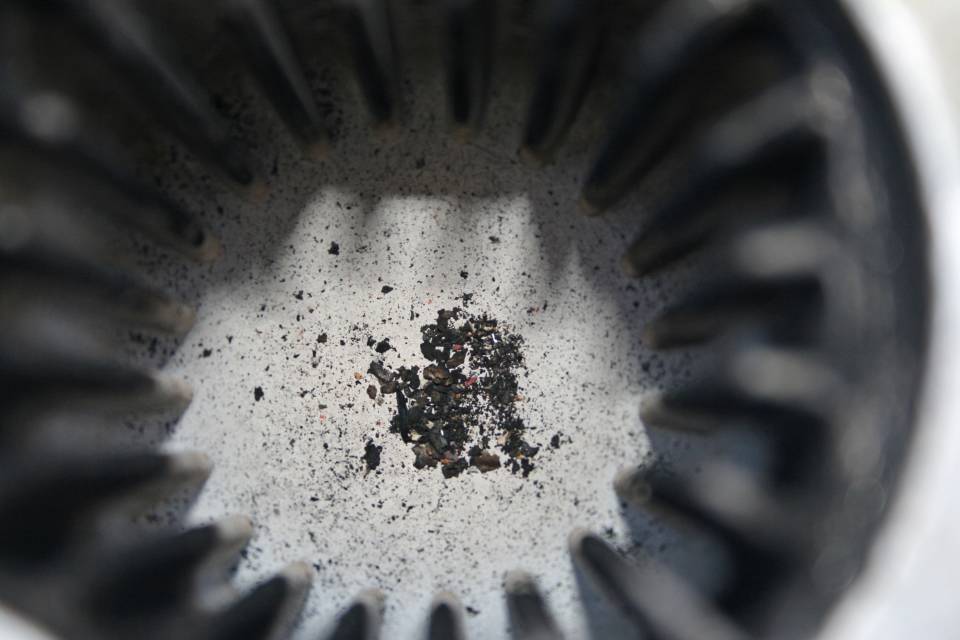

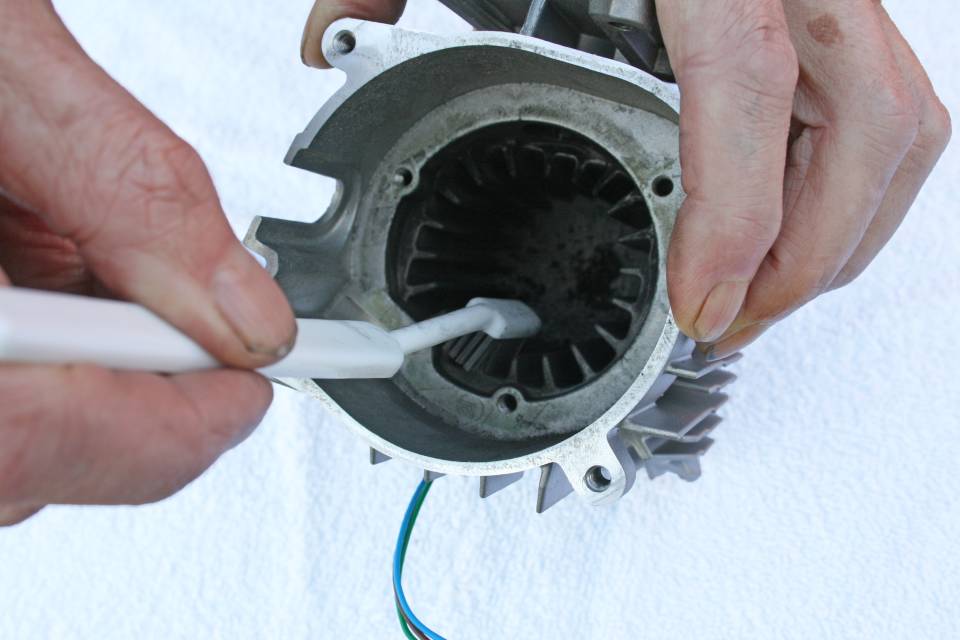

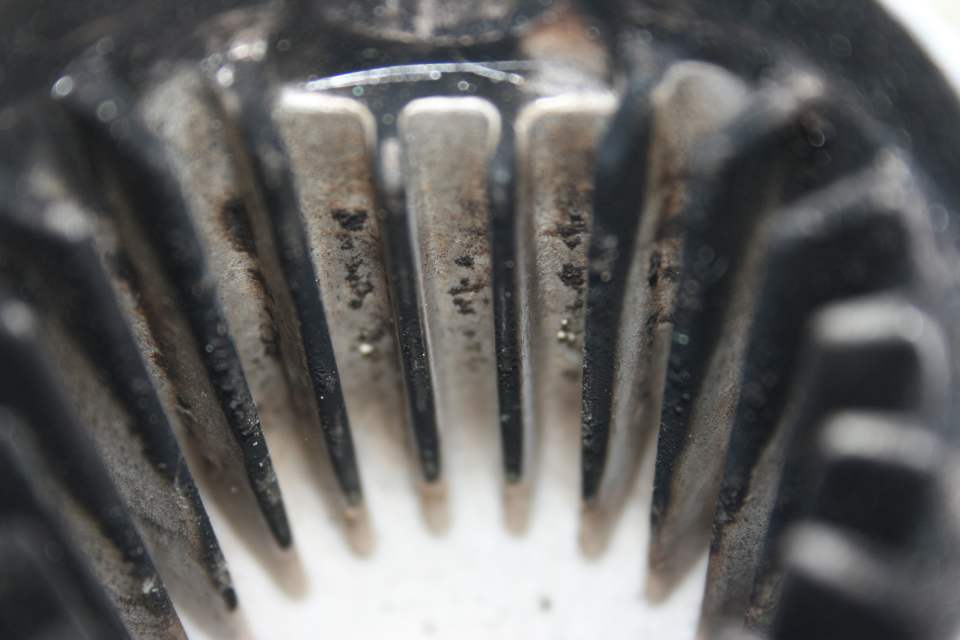

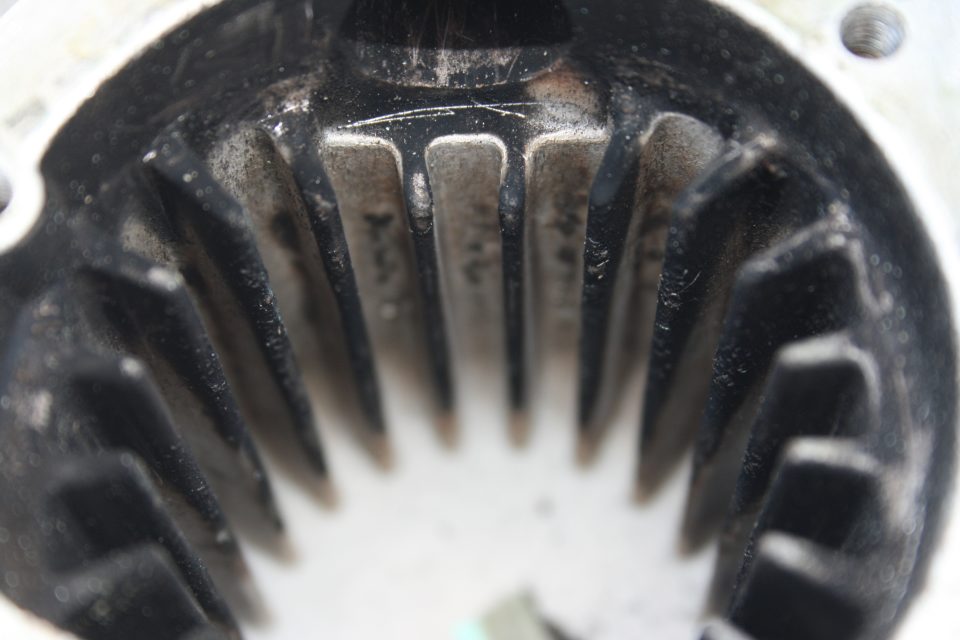

The disassembled Eberspacher D2.
Check the blower gasket, mine was ok and reused.
Later Roy found an Espar document that says it should always be renewed. It's your decision.

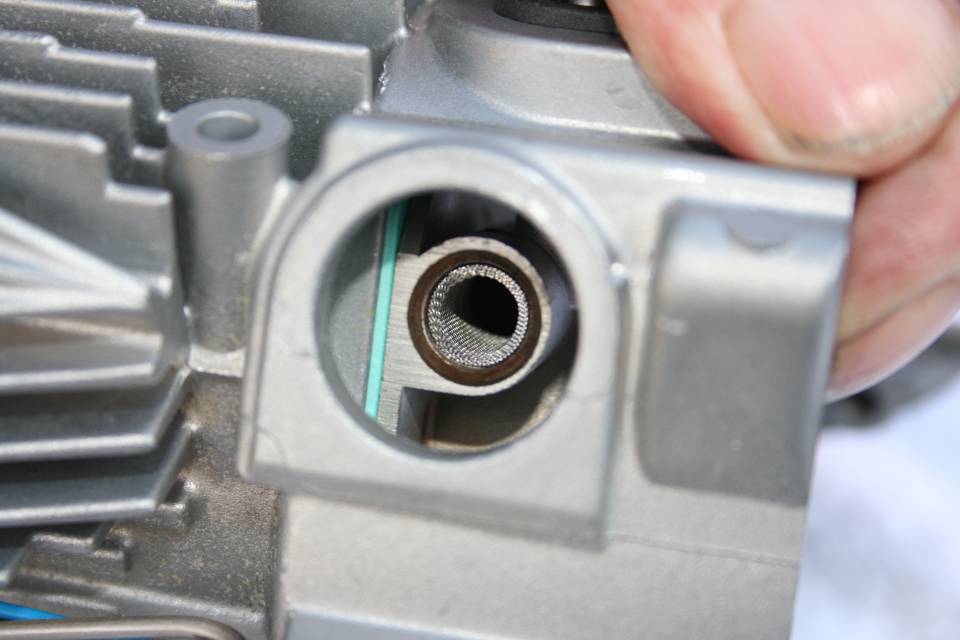

Fuel filter in a D1LCC pump recess.
You may have to use a pointed implement dug into the side of the filter to remove it.
Remove the air inlet grille by turning slightly and pull off.
Try in both clockwise and anti clockwise directions.
If too tight to turn you may have to lever it off
Removing the case and Electronic Control Unit.
Remove the air outlet end cap if still fitted by inserting a small screwdriver under the case to free the pips (photos on D1LCC servicing page). Unclip and remove the upper casing.





The Eberspacher can now be lifted from the casing.

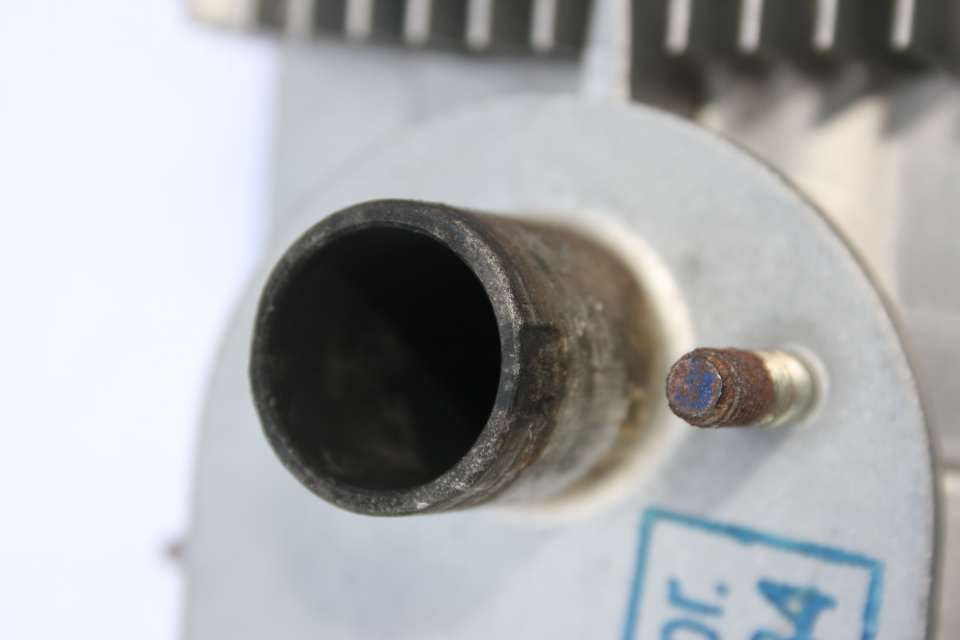

The exhaust outlet is on the lower right.
Top view of the Eberspacher D2.
Combined Flame and Overheat sensors on right.
Glowpin middle lower.
Unplug the 3 wiring connectors from the ECU.
Close up view of the ECU holding clips.
Also shows the magnet mounted in the impeller.





Remove the torx fixing screw.
Press the holding clips inwards and remove the ECU.
Page 3 continues with the examination, diagnosis and reassembling.






Unplug the blower motor wiring connector on the other side.
Read the disclaimer at the bottom of this page before starting any work.
You will need a special tool to remove the glow-pin, our modified socket works beautifully.
You will also need T20 and T25 torx bits and screwdrivers.
Always replace the burner gasket and glowpin screen, the motor gasket can often be reused.
D2 and D4 glowpins should last for the life of the heater.
Clicking on the images will display a larger better quality picture.

The Airtronic D4 heater is a higher heat version of the Airtronic D2, servicing is the same.
The Airtronic D5 heater is different, see D5 D5LC D5L servicing page.
Checking the Fuel Metering Pump Filter.







Unscrew the 17mm nut on the fuel pump inlet.
Do not unscrew the nut at the end closest to the terminals.
D1LCC pump with filter removed.
Badly neglected filter with its replacement.
The condition of this filter is not normal, the filter can usually just be checked for debris and does not need to be changed.
The Fuel Metering Pump contains a fuel filter which should be checked and cleaned as part of the service.
The photographs are of an Eberspacher D1LCC pump, the Eberspacher Airtronic D2 pump is similar but has different connections.
Disassembling the Blower unit
Originally we thought these were non repairable but we have now taken one apart.
Only do this if the motor has failed.
Click here for more details and photos.
